The light you see.
And all the light
you don't.

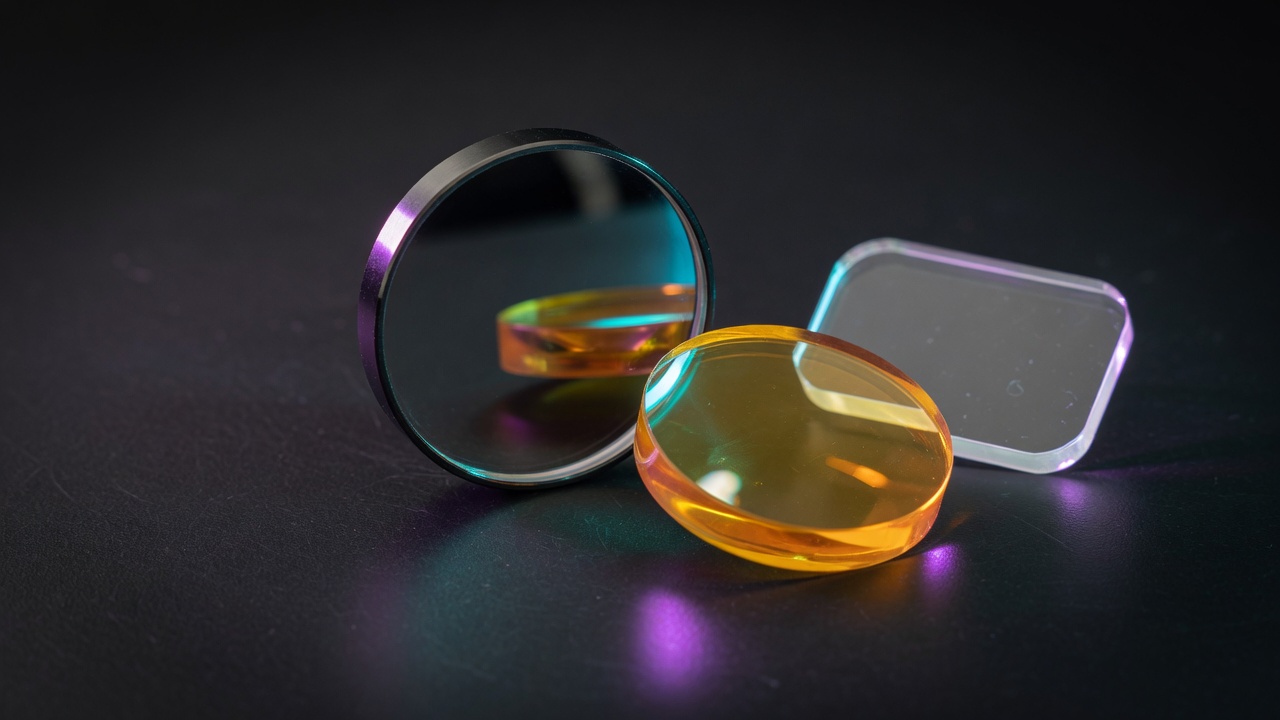

Quantum Optx manufactures precision optical components from deep ultraviolet through long-wave infrared — twelve substrates, one qualified supply chain, from raw material through fabrication to final coated optic.
Pick a wavelength.
See what transmits.
Drag from deep ultraviolet to long-wave infrared. Every substrate we stock lights up the moment your wavelength falls inside its transmission window — with wavenumber and photon energy, so you can check it against your source.
Drag the marker — or jump to a laser line
Ranges are approximate useful transmission windows. Cut-on and cut-off shift with grade, thickness, temperature and coating design — confirm against a grade-specific datasheet before design freeze.
From UV glass to
long-wave semiconductors.
Sourced through a qualified global network, prepared for yield, and carried with full batch and lot traceability — whichever end of the spectrum you work in.
Zinc Selenide
CVD laser grade, ≤ 80 µm inclusions. The workhorse for CO₂ optics — low absorption at 10.6 µm and a visible alignment channel.
- n @ 10.6 µm2.4028
- BandsVIS · NIR · MWIR · LWIR
Germanium
Highest index of the common IR set — compact thermal optics. Specify operating temperature; transmission falls off with heat.
- n @ 10.6 µm4.0032
- BandsMWIR · LWIR
Silicon
Low density, high thermal conductivity. Preferred for weight-sensitive MWIR windows and laser mirror substrates.
- Density2.33 g/cm³
- BandsNIR · SWIR · MWIR
Chalcogenide Glass
Moldable, athermal glass with very low dn/dT — the choice when a thermal imager must hold focus across temperature.
- n @ 10.6 µm2.5109
- BandsNIR · SWIR · MWIR · LWIR
Copper Mirrors
Diamond-turned metal mirror substrates for high-power beam delivery, where no transmissive optic would survive the load.
- Reflectance> 98% @ 10.6 µm
- CoolingWater-cooled option
UV & Visible
Fused silica, calcium and magnesium fluoride, sapphire and N-BK7 — for alignment paths, beam combiners and visible channels.
- Deep UV from0.12 µm
- BandsUV · VIS · NIR
Tolerances you can
hold at volume.
A first article is easy to make well. What matters for an OEM program is the two-thousandth part — same figure, same coating curve, same paperwork.
- Diameter tolerance±0.025 mm
- Surface quality40-20 · 20-10 on request
- Flatnessλ/4 typical · λ/10 achievable
- Parallelism< 1 arc-min
Material to coated component,
without handoff risk.
Three linked capabilities under one process control system — optimised for repeatability, yield control and batch traceability.
Raw Materials
Qualified global sourcing with yield optimisation, thickness preparation before fabrication, and lot-level traceability.
- Diameter5 – 200+ mm
- Thickness2 – 25+ mm
- FormsSlabs · Blanks
Fabricated Optics
Lenses, windows, mirrors and custom geometries produced in batch with full tooling capacity and scrap control.
- Diameter tol.±0.025 mm
- Surface quality40-20 / 20-10
- Parallelism< 1 arc-min
Coating & Quality
Thin-film coating on our substrates or yours, in a controlled deposition environment with spectrophotometric verification.
- Transmission≥ 99.4% / surface
- Absorption≤ 0.2%
- LIDT (CO₂ CW)15–25 kW/cm²
How an OEM program runs.
Repeat production is a process problem, not a parts problem. We qualify once, then hold the recipe — so the hundredth batch matches the first article.
-
Sourcing & material qualification
Grade selection, inclusion criteria and yield-optimised blank layout against your print.
-
Precision fabrication
Grinding, polishing and edging to tolerance, with in-process metrology at each station.
-
Thin-film coating
Controlled deposition with witness samples; AR, broadband, dual-band or HR designs.
-
Inspection & qualification
Interferometric figure verification and spectrophotometric T/R against the approved curve.
-
Repeat production
Locked recipe, batch traceability and inventory-based fulfilment for recurring part numbers.
We coat your optics, too.
Send finished, uncoated optics for coating-only service. Incoming inspection covers surface quality, flatness and figure, edge and chamfer condition, and coating compatibility — only qualified parts proceed.
Where our optics run.
CO₂ laser systems
Focusing lenses, output windows and copper turning mirrors for 10.6 µm industrial sources.
Thermal imaging
Germanium and chalcogenide objectives for uncooled LWIR sensor modules.
Medical & diagnostics
Windows and sensor optics for analytical, imaging and therapeutic platforms.
Spectroscopy
Broadband windows and cell optics for FTIR and process analytics.
Substrate guidance for RFQ calls.
Eight senior-level notes on ZnSe, Ge, ZnS, Si, fused silica, chalcogenides, CaF₂ and multi-band selection — written the way engineers argue on the call, not as a brochure.
Send us your print.
Share drawings, wavelength, quantity and target lead time. We will come back with material recommendation, coating design and pricing.
